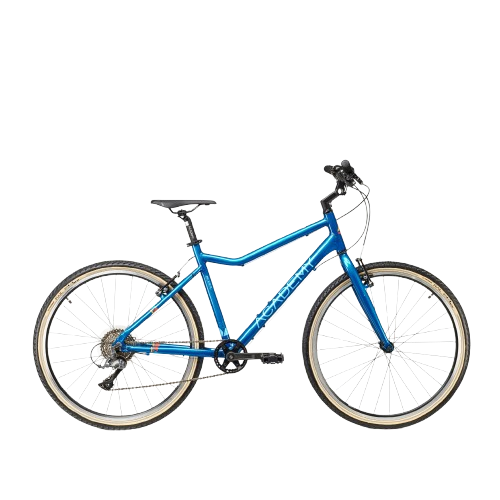

Fahrrad Academy Grade 6 Blue 26" - 2025

Technical Details

• Wheels: 26" x 1.5" x 28H, aluminum, black

• Tires: VEE TIRE Rail 26"x1.50 (40-559), Skinwall Synthesis, reflective stripes, 90 TPI

• Frame Material: Triple-butted aluminum

• Frame Shape: Diamond Knick

• Weight: 9.00 kg

• Drive: 8-speed chain derailleur

• Shifter: Shimano SL-R2000, rapidfire / Microshift TS-39-8R

• Rear Derailleur: Shimano RD-R2000GS Claris / Microshift RD-26S

• Crankset: ACADEMY 30T, 150mm, aluminum

• Cassette/Freewheel: Shimano CS-HG 41 11-34T / Microshift CS-H081 11-34T

• Rear Hub: Aluminum, 14G/28H, black, QR

• Front Hub: Aluminum, 14G/28H, black, QR

• Front Brake: V-Brake (aluminum)

• Rear Brake: V-Brake (aluminum)

• Handlebar: 640 mm, double-butted aluminum, 20mm rise

• Stem: Adjustable COMOA Ergoline

• Seat Post: 27.2mm x 300mm, aluminum

• Saddle: Vader

• Pedals: 105x90x23mm, ball bearing, black with reflectors, 9/16 thread

Bike Geometry

• Frame Height: 45 cm

• Seat Tube Length: 450 mm

• Seat Angle: 73.0°

• Head Tube Length: 150 mm

• Steering Angle: 73.0°

• Top Tube Horizontal Length: 542 mm

• Bottom Triangle Length: 420 mm

• Wheelbase: 1018 mm

• Minimum Saddle Height: 830 mm

• Maximum Saddle Height: 950 mm

• Crank Arm Length: 140 mm
